Resins for Functional Prototyping and Molding
Materials for DLP, LCD and SLA 3D Printing Technologies
Discover the steadily growing Cubic Ink® resin portfolio. It is designed for DLP, LCD and SLA 3D printing technologies and focusses on industrial Additive Manufacturing. Our materials are developed to meet application requirements regarding long-time performance determining properties such as temperature-, UV- and chemical-resistance. Special properties are among others, ESD-capability, flame-retardancy, good elasticity and a high impact strength.
Resins for Functional Prototyping and Molding
Materials for DLP, LCD and SLA 3D Printing Technologies

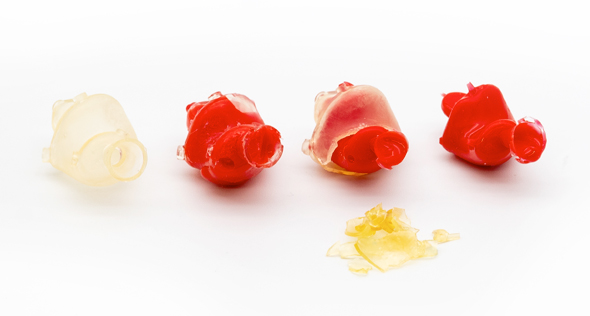

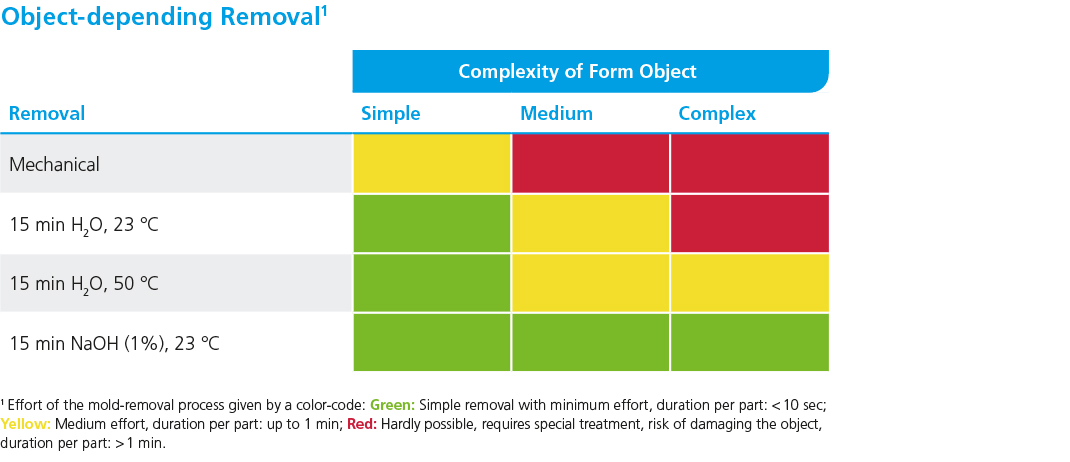

Cubic Ink®
Mold 2000 VP
Water-breakable cast material compatible with various (2K-)filling compounds
Cubic Ink® Mold 2000 VP is the material of choice for cast applications with molten and a variety of 2K filling compounds, e.g. 2K silicones, epoxides, polyurethanes, polyesters as well as low-melting metals and alloys. Highlight of this material is its water-breakable character allowing a complete breakup of the mold material when exposed to water. Thus, our material allows for the generation of complex and fine structures which are hardly achievable with conventional casting materials. Moreover, since the manual removal is not necessary anymore, the mold materials are an enabler for an automized fill and remove process.
Materials can be used in
Performance Indicators
| Compatible Filling-Materials | Various 1 and 2K Materials |
| Solubility in Water or Aqueous Media | Very Good |
| Print Accuracy | Very Good |
| Minimum Wall Thickness (Mold) | 200 μm |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Transparent, Colors on Demand |
| Washing | IPA or Ethanol |
| Post-Processing | UV Post-Cure |
| Mold Removal | Water, or Diluted Alkalic Media |

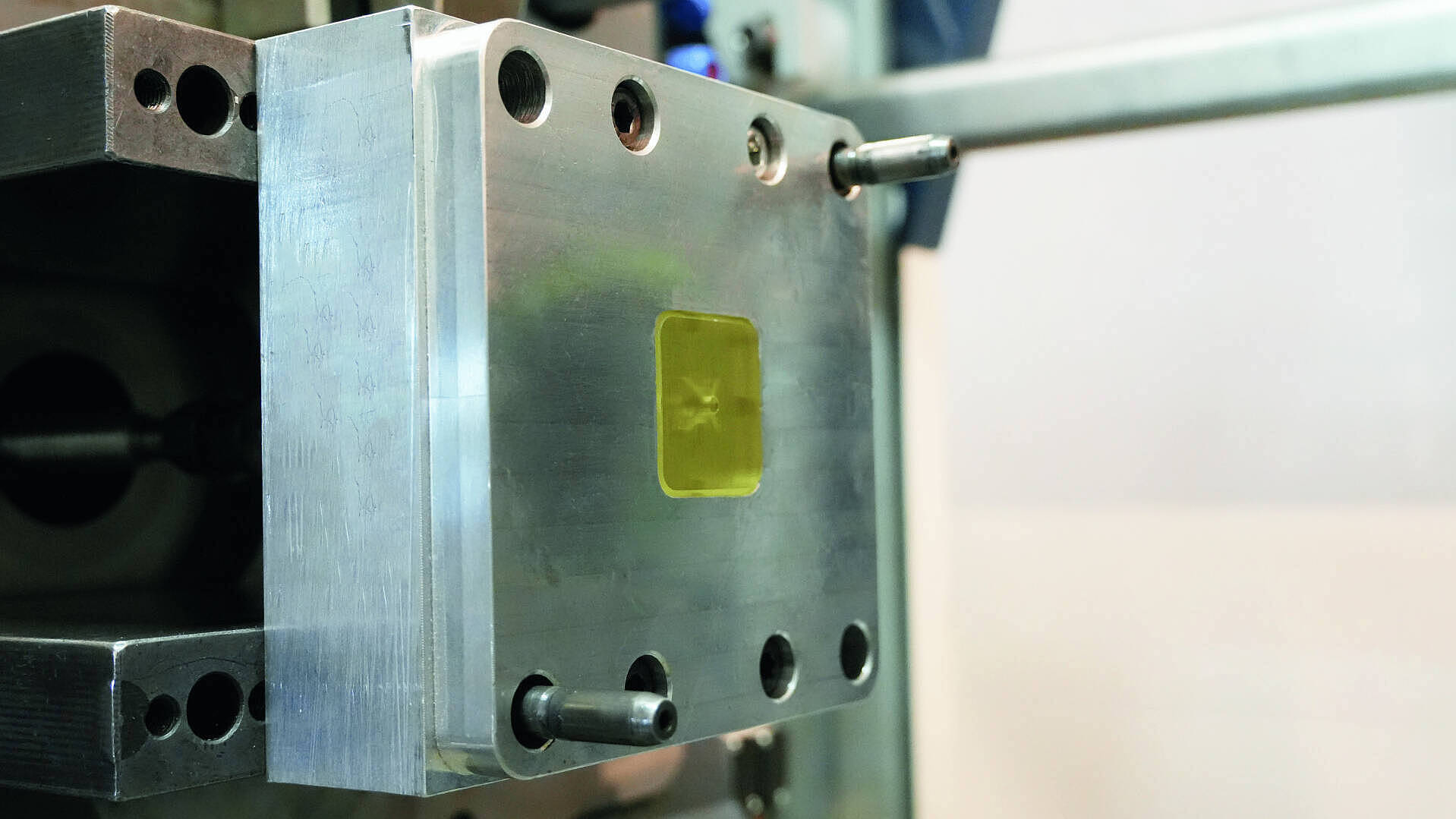

Cubic Ink®
Mold 3000 VP
Water-breakable cast material for injection molding applications
Cubic Ink® Mold 3000 VP is s our newest product in the series of One-Shot-Molds (OSMs) for usage in injection molding applications tolerating high temperature and pressure conditions. Our material has proven excellent compatibility with typical filling materials, e.g. PE, PP, PA6(-GF) and PC providingvery good accuracy in the final object. The improved water-affinity allows for an easy mold removal in water or aqueous media. Moreover, undesired swelling behaviour is reduced to a minimum, which protects the final part from deformation or cracking.
Materials can be used in
Performance Indicators
| Max Temperature at Injection Nozzle | 320°C |
| Max Injection Pressure | 800 bar |
| Min Thickness Filling Material | 100 μm |
| Swelling in Water | Minimal |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Transparent, Colors on Demand |
| Washing | IPA or Ethanol |
| Post-Processing | UV Post-Cure |
| Mold Removal | Water, or Diluted Alkalic Media |
Technical Details

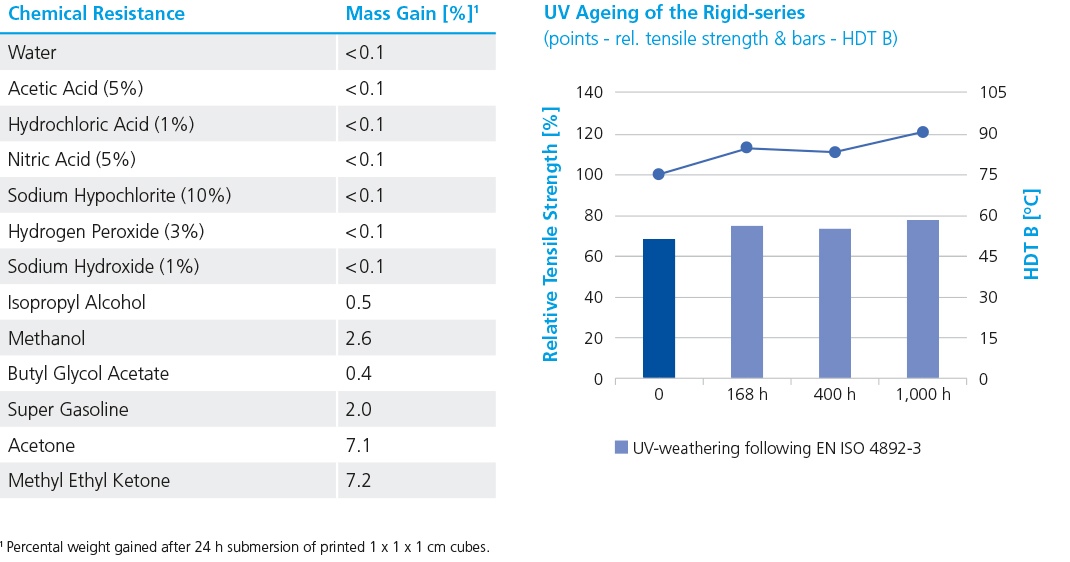

Cubic Ink®

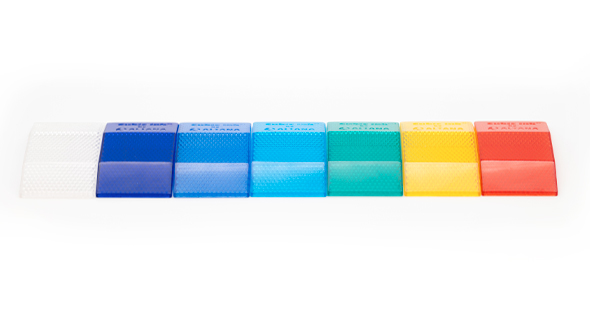

Rigid 300 VP
Rigid materials for functional prototyping
This class of materials is not only customizable in rigidity and hardness, but also allows maximum design freedom and delivers sharp details thanks to its low viscosity. It is ideal for robust applications and has a good thermal long-term stability.
Materials can be used in
Performance Indicators
| Tensile Strength | 57 MPa |
| Tensile Modulus | 2,600 MPa |
| Elongation at Break | 4.3% |
| Shore Hardness | 82 D |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black, more on Demand |
| Washing | IPA |
| Post-Processing | UV Post-Cure |
Technical Details
Cubic Ink®
Rigid 300 VP High Resolution
Rigid material for high precision printing
Cubic Ink® Rigid 300 VP High Resolution allows for printing with ultra-thin layers and a crisp XY-resolution while offering high print speeds due to its reactivity. Its low water uptake ensures dimensional stability in permanent contact to fluids.
Materials can be used in
Performance Indicators
| Tensile Strength | 37 MPa |
| Elongation at Break | 8% |
| Depth of Penetration | 0.08/0.10 |
Water Uptake, 24h, 23 °C | 0.3% |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Translucent Yellow |
| Washing | IPA |
| Post-Processing | UV Post-Cure |
Cubic Ink®

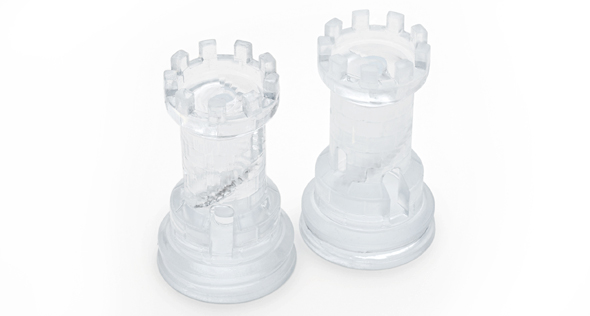

Rigid 404 VP-Clear
Transparent and colorless materials
Cubic Ink® Rigid 404 VP-Clear is designed for applications where a high transparency and clarity is needed. Other optical properties such as the refractive index along with the mechanical properties can be customized.
Materials can be used in
Performance Indicators
| Tensile Strength | 55 MPa |
| Elongation at Break | 4.4% |
| Optical Appearance | Exceptional Clarity |
| Refractive Index | on Demand |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Colorless, on Demand |
| Washing | IPA |
| Post-Processing | UV Post-Cure |
Cubic Ink®
Tough 1900 VP
All-round material with balanced properties
Cubic Ink® Tough 1900 VP is designed as a general purpose solution with excellent definition, a balanced set of mechanical properties and can be easily colored.It is of low viscosity and allows fast and reliable printing with maximum design freedom.
Materials can be used in
Performance Indicators
| Tensile Strength | 30 MPa |
| Tensile Modulus | 1,300 MPa |
| Elongation at Break | 24% |
| Izod notched | 22 J/m |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Grey, more on Demand |
| Washing | IPA |
| Post-Processing | UV Post-Cure |

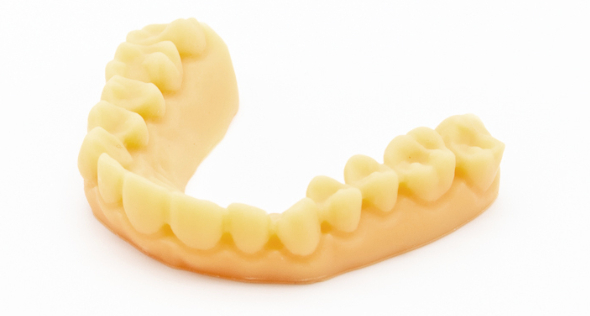

Cubic Ink®

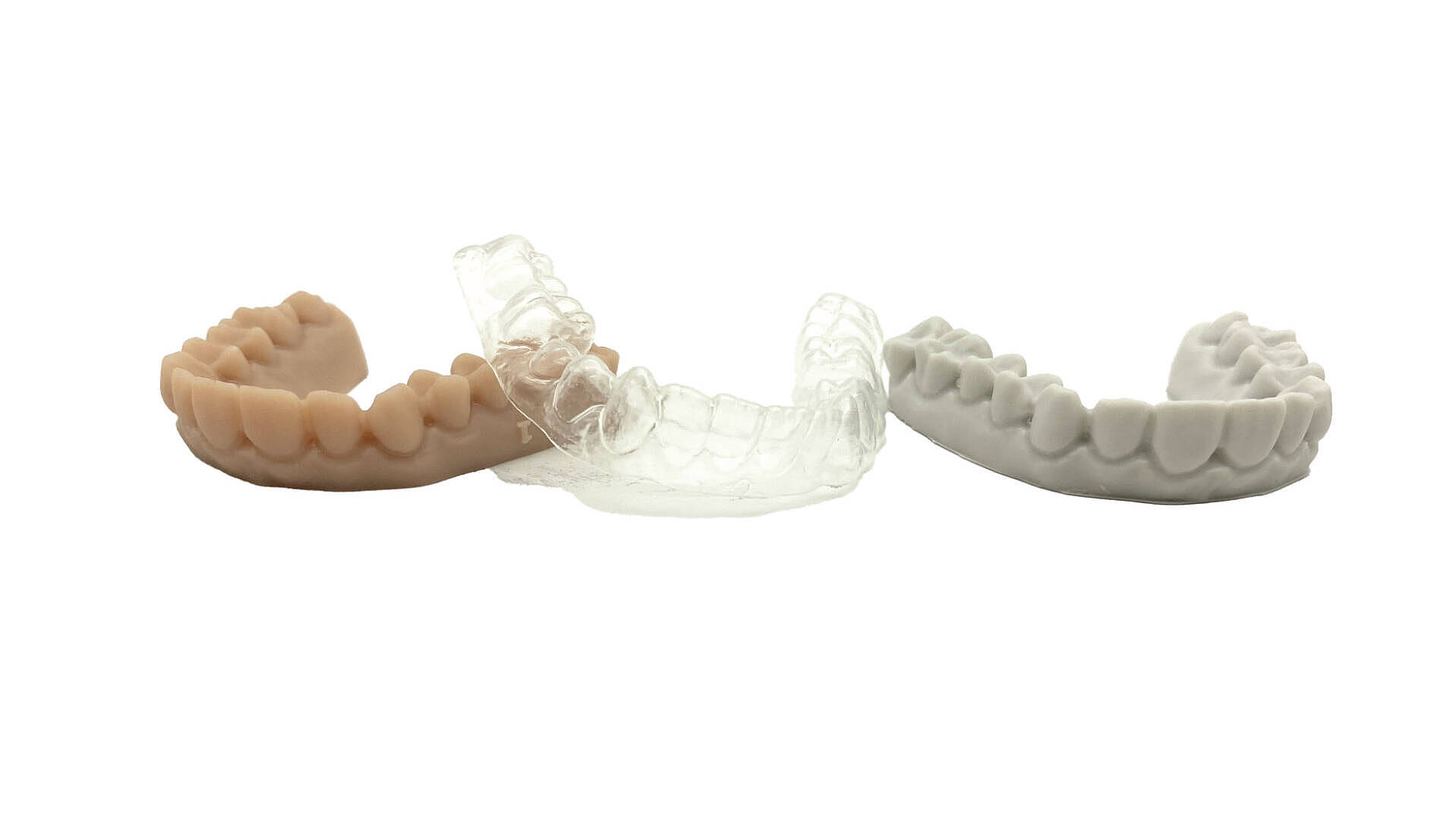

Dental 3000 VP
Material for dental models
Cubic Ink® Dental 3000 VP is designed for fast and high-resolution printing. Fine-tuned mechanical and thermo-mechanical properties, application-specific color and scalable pricing make this material an excellent model material for the dental industry. Printable with up to 150 microns.
Materials can be used in
Performance Indicators
| Flexural Strength | 83 MPa |
| Flexural Modulus | 2,200 MPa |
| Deflection at Fracture | > 10% |
| Shore Hardness | 85 D |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Ivory White, more on Demand |
| Washing | IPA |
| Post-Processing | UV Post-Cure |

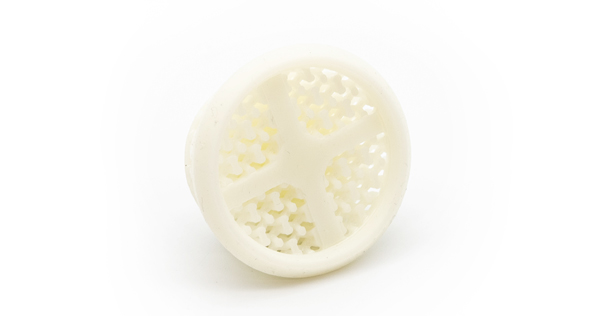

Cubic Ink®
Flexible 1400 VP
Very soft and flexible material
Cubic Ink® Flexible material family groups resins with adaptable hardness, elasticity and colors in the Shore A range. Flexible 1400 VP has a Shore A of 30 while being processable on both common open DLP and LCD printers.
Materials can be used in
Performance Indicators
| Shore Hardness | 30 A |
| Compression Set-B | < 5% |
| Elongation at Break | 160% |
| Tensile Strength | 2.6 MPa |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | on Demand |
| Washing | IPA |
| Post-Processing | UV Post-Cure |

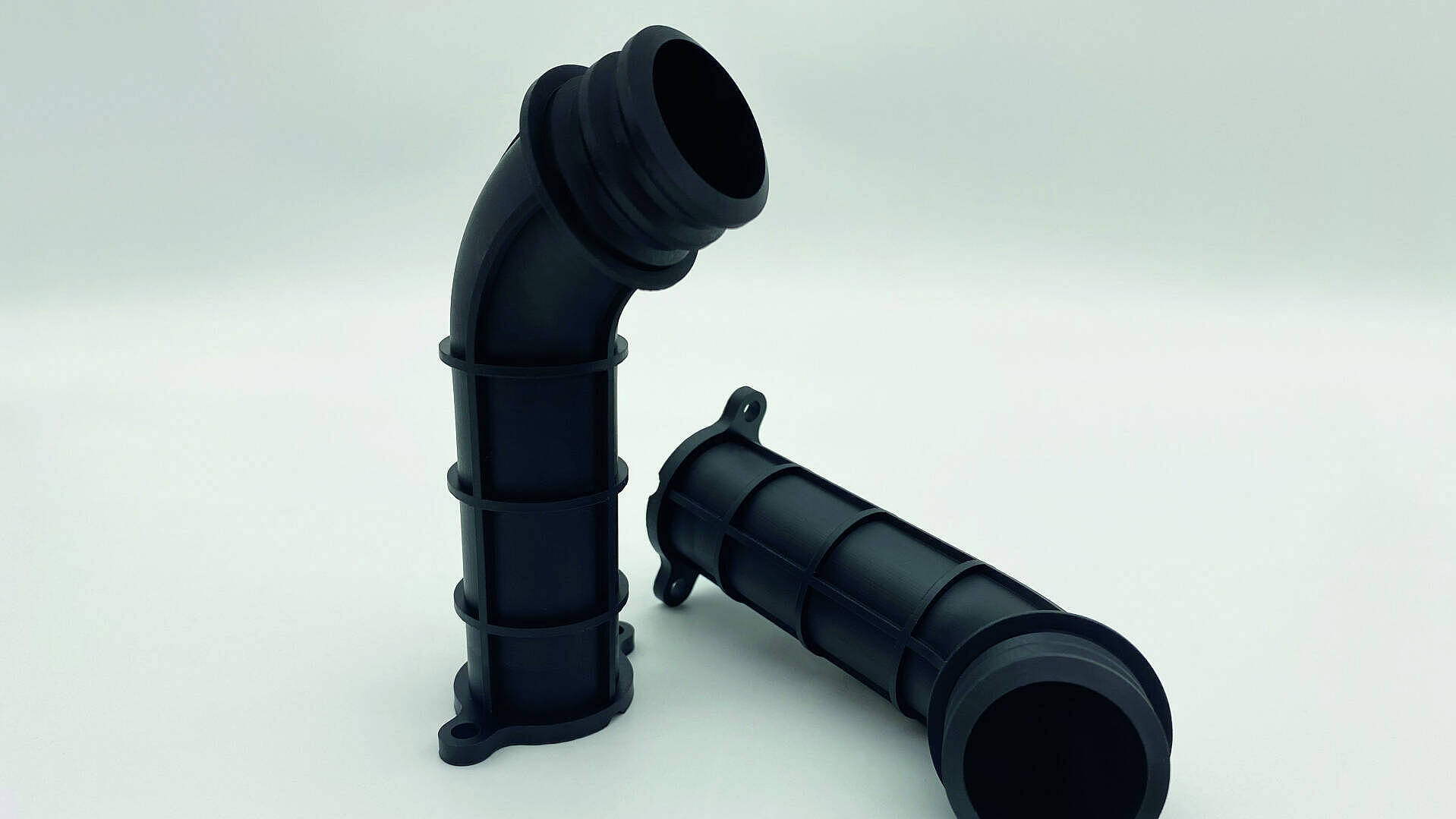

High Temperature and High Performance Resins for Industrial Additive Manufacturing
Materials for DLP, LCD and SLA 3D Printing Technologies
Cubic Ink®
High Temperature 200 VP
Material with very high heat resistance
Cubic Ink® High Temperature materials with very easy and versatile processability show high printing accuracy. Due to superior thermal and chemical stabilities with heat deflection temperatures above 300°C and no brittleness the materials are designed, and yet customizable, for demanding applications at elevated temperatures up to 250°C.
Materials can be used in
Performance Indicators
| HDT B | > 300°C |
| Chemical Resistance | Superior |
| CTE (0 – 250 °C) | 70 x 10-6 K-1 |
| E-Modul | 4,500 MPa |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | on Demand |
| Washing | IPA |
| Post-Processing | UV and/or Thermal Post-Cure |
Cubic Ink®
High Temperature 303 VP-ESD Black
ESD material with very high heat resistance
Cubic Ink® High Temperature ESD materials meet customers ESD-requirements and target applications where high heat and chemical resistance is necessary. The materials are fairly low viscous and versatile processabile in terms of printer and post-curing.
Materials can be used in
Performance Indicators
| Volume Resistivity | 6.6 x 107 Ω·cm |
| HDT A | 216°C |
| Chemical resistance | Very Good |
| Thermal stability | Verry Good |
Processing Guide
| Printing Technology | DLP and LCD |
| Color | Black |
| Washing | IPA |
| Post-Processing | UV and/or Thermal Post-Cure |

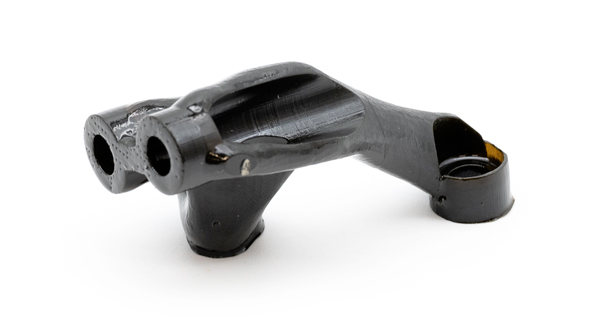

Cubic Ink®
High Performance 1-202 VP
Thermal form stable material
With thermal form stabilities over 190°C these materials are designed for demanding applications at very high temperatures. Additionally, this material family maintains its strong character over a long period at elevated temperatures.
Materials can be used in
Performance Indicators
| HDT B | 195°C |
| Flexural Strength | 130 MPa |
| Elongation at Break | 3.5% |
| Flammability | HB |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black, Intrinsic |
| Washing | IPA |
| Post-Processing | UV and thermal Post-Cure |

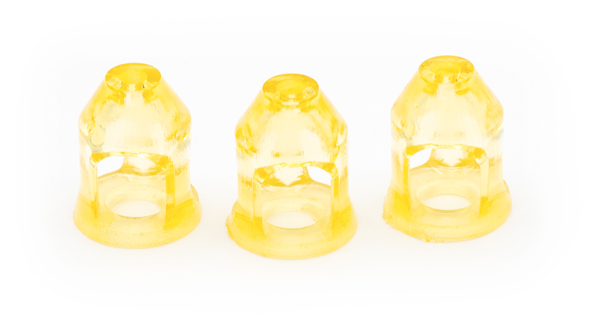

Cubic Ink®

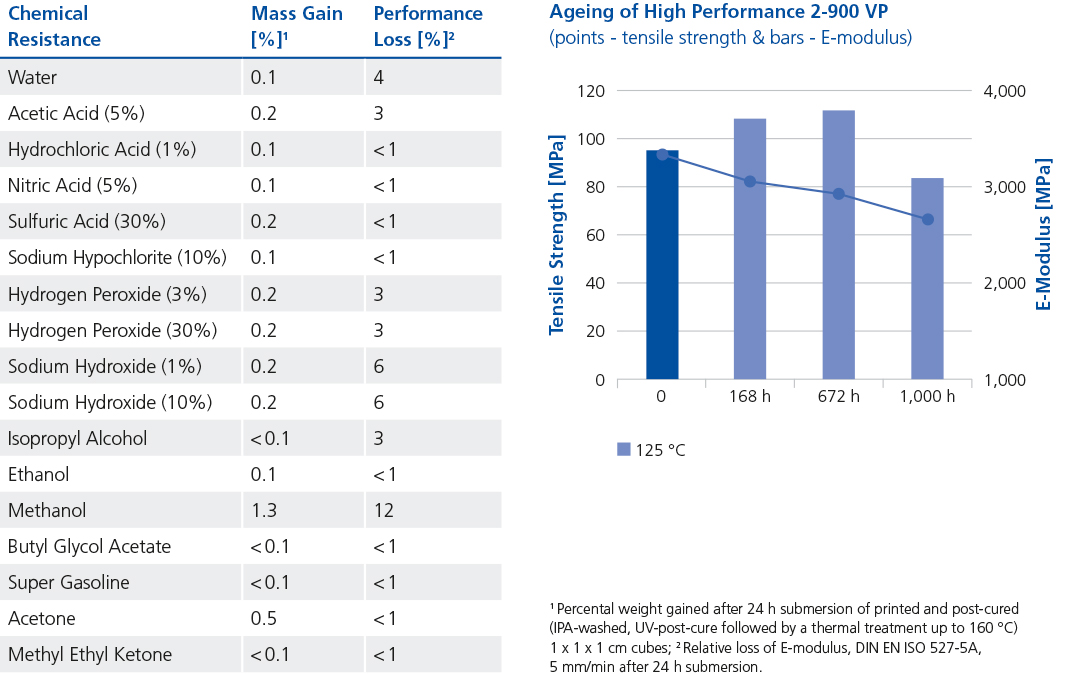

High Performance 2-900 VP
Material for chemically challenging surroundings
Chemical very resistant materials in various industrial fluids including a broad range of customizable mechanical and thermo-mechanical properties for final part production. The inherent decent viscosity and good pot-life allows fast printing and easy handling in the printing process.
Materials can be used in
Performance Indicators
| Chemical Resistance | Superior |
| HDT B | 138°C |
| Flexural Strength | 118 MPa |
| Dielectric Strength | 25 kV/mm |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black, Red, Intrinsic |
| Washing | IPA |
| Post-Processing | UV and Thermal Post-Cure |
Technical Details
Cubic Ink®

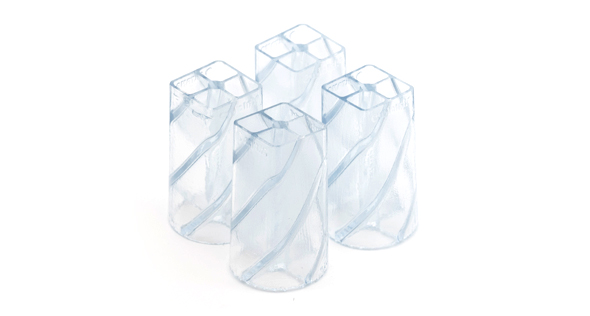

High Performance 2-1400 VP
Transparent allround material for stereolithography
Cubic Ink® High Performance 2-1400 VP is a transparent material with a balanced set of mechanical and thermo-mechanical properties. It has a very low water uptake, a good surface finish and low shrinkage. This material is especially designed to be used on stereolithography printers. Available in different colors and shades.
Materials can be used in
Performance Indicators
| Water Uptake | < 0.1 |
| Chemical Resistance | Very Good |
| Izod notched | 38 J/m |
| Shrinkage | Less |
Processing Guide
| Printing Technology | SLA |
| Color | Transparent, Black, on Demand |
| Washing | PC/IPA |
| Post-Processing | UV Post-Cure |
Technical Details

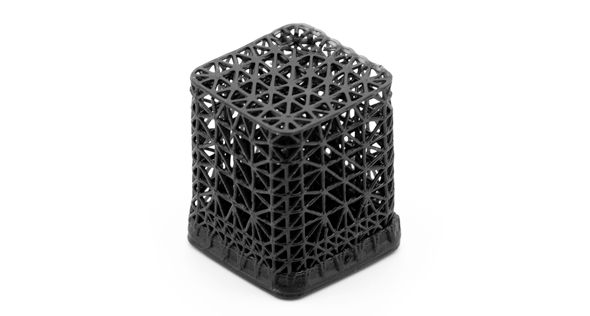

Cubic Ink®
High Performance 3-1700 VP
Elastic and tear resistant material with a very low water uptake
Cubic Ink® High Performance 3-1700 VP is an elastic material with outstanding low water-uptake, a broad range of operating temperature, a competitive UV- and temperature ageing stability and a high tear strength. It comes in a moderate viscosity and has long-time pot-life even at elevated temperatures.
Materials can be used in
Performance Indicators
| Tear Strength | 120 kN/m |
| Thermal Stability | Over broad Temp. Range |
| Chemical Resistance | Very Good |
| Rebound | 30% |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black, Grey, Green, Intrinsic |
| Washing | DPM/IPA |
| Post-Processing | Thermal Post-Cure |
Technical Details

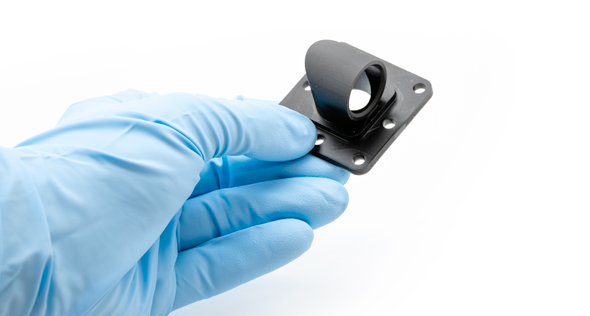

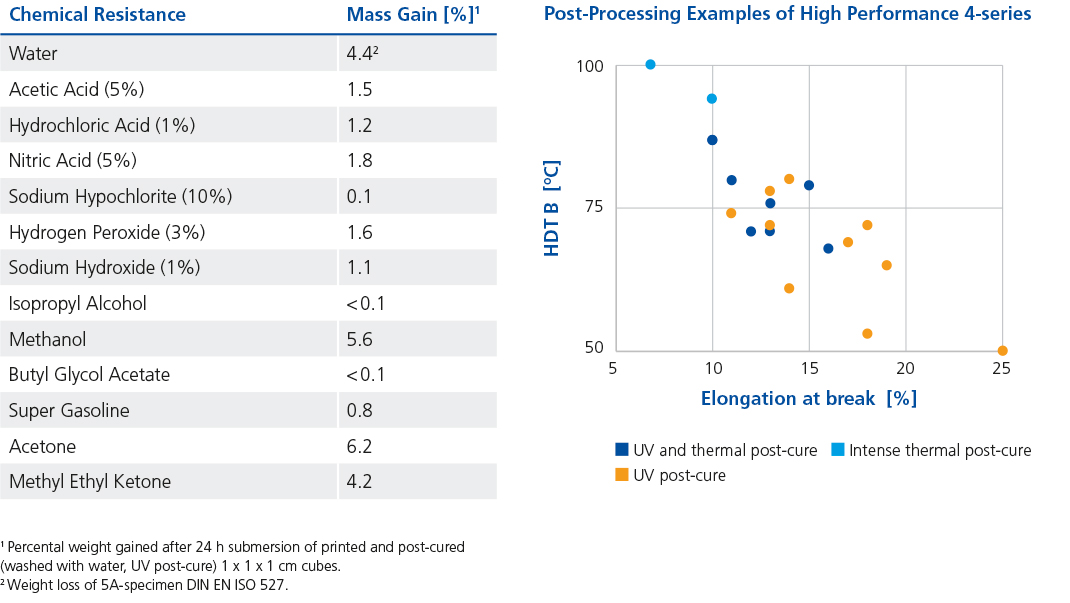

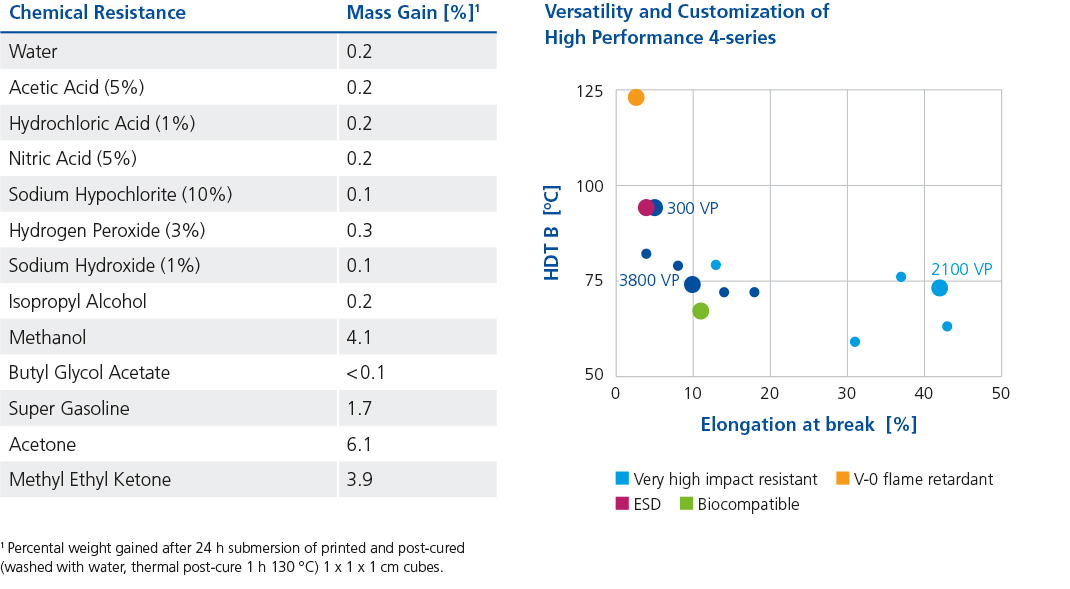

Cubic Ink®

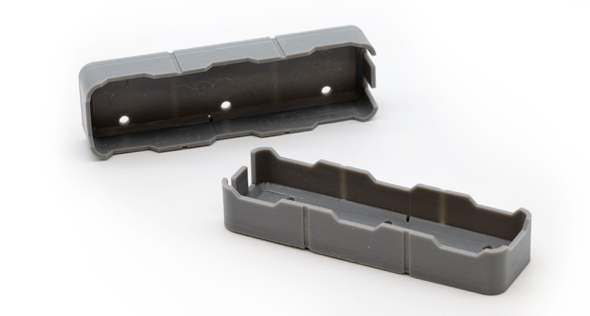

High Performance 4
Technical All-round Materials
Highly versatile technical all-round materials with good impact resistance, high thermal form stability and scratch resistance
Cubic Ink® High Performance 4 materials were designed for applications where a combination of good impact strength and toughness with thermal form-stability and elasticity is needed. Additionally, an outstanding scratch resistant surface makes these technical all-round materials a customer's choice for final part production. The resins' low viscosity allow fast and accurate printing while maintain a high degree of customization depending on customer's needs such as high impact resistance, flexibility, cytotoxicity, ESD-character or flame retardancy.
Performance Indicators
| Izod notched | 25 – 70 J/m |
| HDT B | 70 – 100°C |
| Elongation at Break | 5 – 70% |
| Cytotoxicity | on Request |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | on Demand |
| Washing | Water |
| Post-Processing | UV and/or Thermal Post-Cure |
Technical Datasheets
| HP 4-300 VP | Technical datasheet |

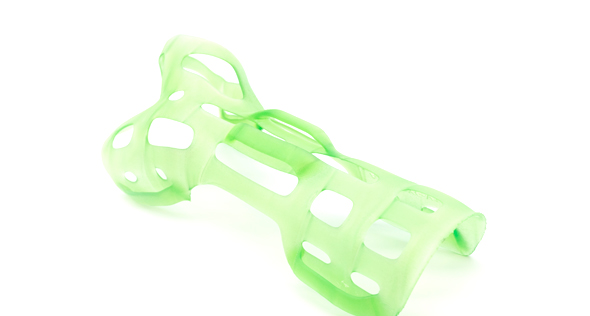

| HP 4-3800 VP | Technical datasheet |
| HP 4-6700 VP | Technical datasheet |
| HP 4-4800 VP Black | Technical datasheet |

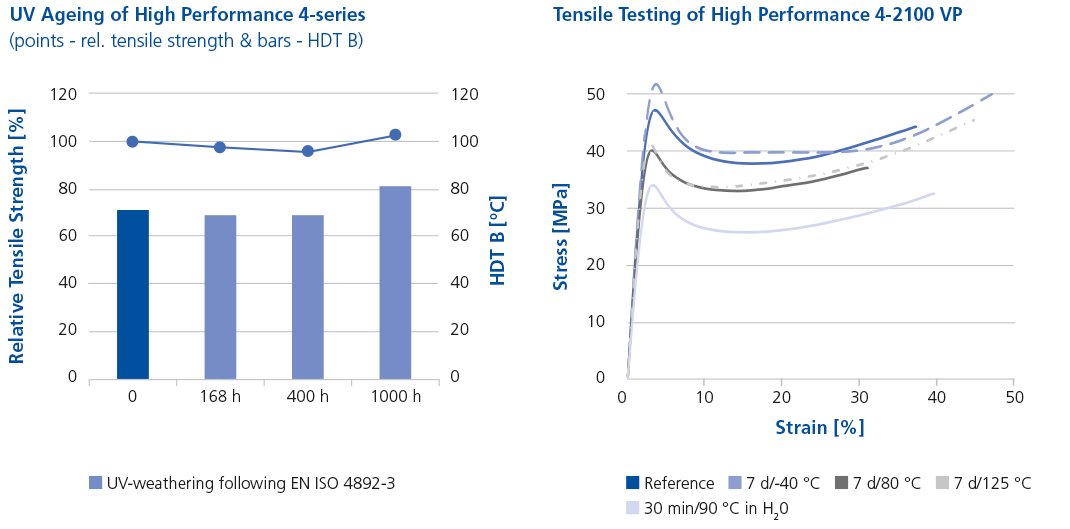

| HP 4-2100 VP | Technical datasheet |

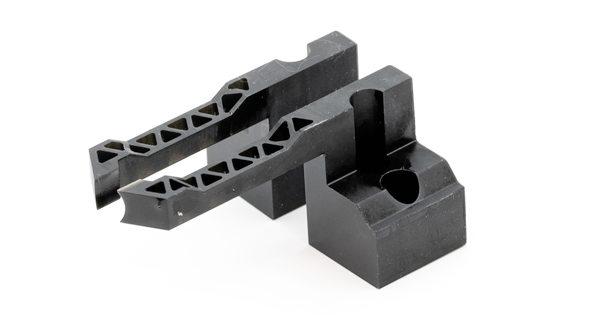

Cubic Ink® High Performance
4-2800 VP-ESD Black
ESD material with excellent processability and low viscosity
Cubic Ink® ESD materials are designed to meet the customer´s ESD requirements. Thanks to their low viscosity a very good processability is given. The tough yet customizable range of properties of these materials makes them a good choice for a broad range of applications.
Materials can be used in
Performance Indicators
| Volume Resistivity | 1.8 x 107 Ωcm |
| HDT B | 94°C |
| Elongation at Break | 4.0% |
| Chemical Resistance | Very Good |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black |
| Washing | Water |
| Post-Processing | UV and/or Thermal Post-Cure |
Technical Details

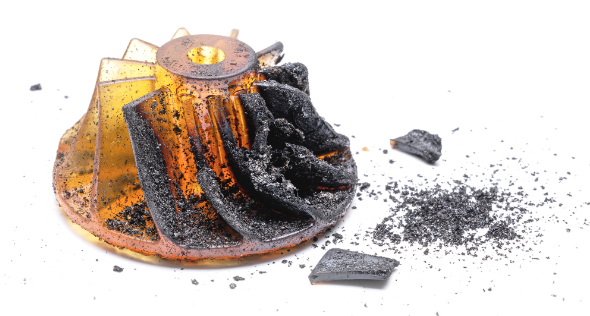

Cubic Ink®
High Performance
4-1000 VP-V0
UL 94 V0-certified material
Cubic Ink@ HP 4-1000 VP-V0 is a flame retardant material with high rigidity. It is V-0 according to UL 94 and its low viscosity results in very good processability and maximal design freedom.
Materials can be used in
Performance Indicators
| Flammability | V-0 |
| Viscosity | Low |
| HDT B | 123°C |
| Tensile Strength | 97 MPa |
Processing Guide
| Printing Technology | DLP, LCD and SLA |
| Color | Black, Grey, Intrinsic |
| Washing | Water |
| Post-Processing | UV and Thermal Post-Cure |
Technical Details
Do you have any questions? We are here to assist you. Please don't hesitate to reach out if you need any help or information. You can contact us at cubic.ink@altana.com. We look forward to hearing from you soon and providing the support you need.
